M1 - 0.07kW
Our M1 Radial Piston Air Motor is manufactured to the highest quality and we can customise to suit your special requirements, various mount types and material of construction including Stainless Steel. Tonson Australia specialise in design, manufacture and supply of Piston Air Motors with many years experience and knowledge into the Australian market. Many options for gearbox types, ratios and mounting available.
Specifications
| Model Code |
Gear Ratio |
Performance at Maximum Speed |
Maximum Torque |
| Series |
Type |
Power |
Torque |
Speed |
Air Consumption |
Speed
|
Torque
|
|
HP
|
kW
|
Nm
|
lbin
|
RPM
|
l/min
|
CFM
|
RPM
|
Nm
|
lbin
|
|
M1 (010)
|
*
|
Standard
|
1:1
|
0.10
|
0.07
|
0.637
|
5.64
|
1100
|
200
|
7
|
220
|
1.12
|
9.9
|
|
*G5
|
with reducer
|
5:1
|
2.84
|
25.1
|
220
|
44
|
4.99
|
44.2
|
|
*G10
|
10:1
|
5.69
|
50.4
|
110
|
22
|
10
|
88.5
|
|
*G15
|
15:1
|
8.53
|
75.5
|
73.3
|
14.7
|
15
|
133
|
|
*G20
|
20:1
|
11.5
|
102
|
55
|
11
|
20.2
|
179
|
|
*G30
|
30:1
|
16.4
|
145
|
36.7
|
7.3
|
28.9
|
256
|

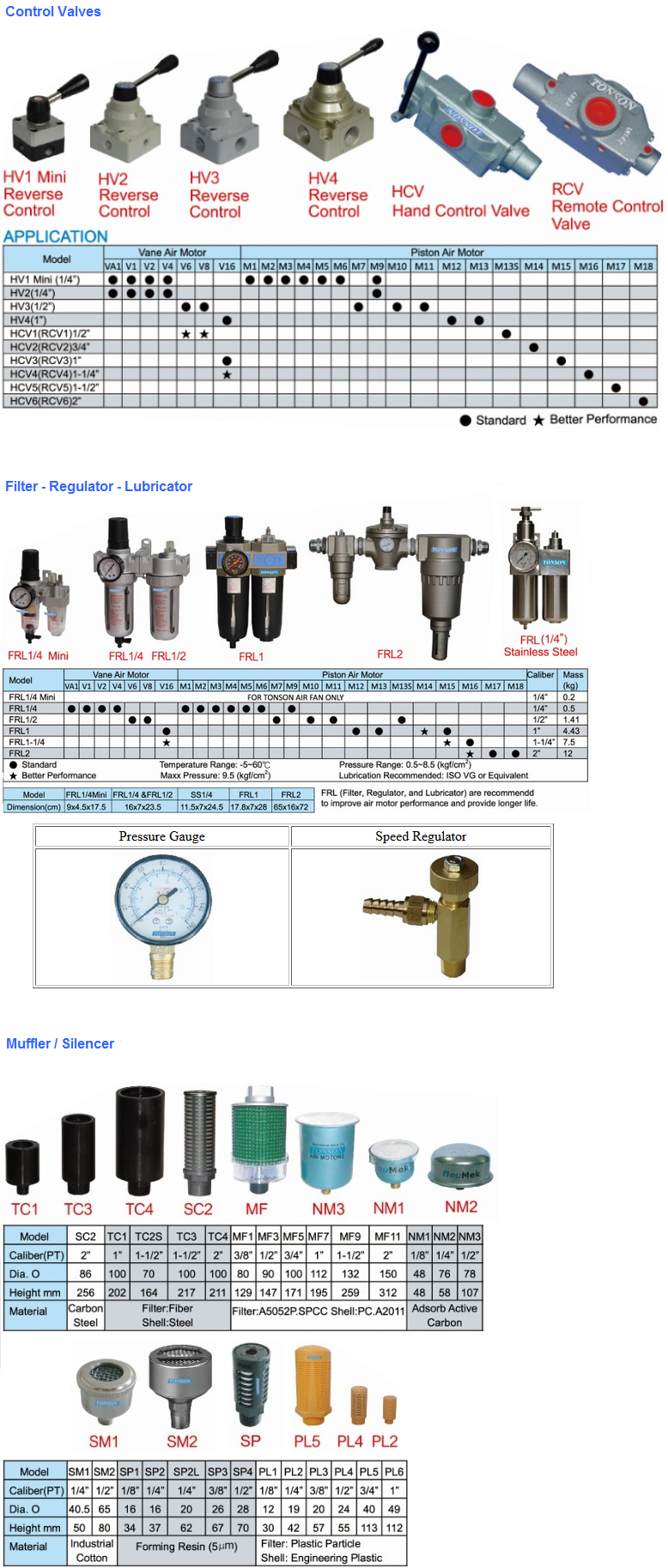

Air Motor Accessories
Control Valves
Call TONSON on Ph: 02 9607 4100 or email us: sales@tonson-motor.com.au for any enquiries or questions on all Air Motors.
