Portable Electric Fans
Features
- Power Saving
- Powerful and strong air flow
- Portable and convenient to move
- Light weight aluminium alloy with low noise
- Anti-Static (Ex) Ducting also available
Applications
- Manufactured for underground cable maintenance, shipping containers, etc.
- Transferring dangerous gasses when welding, construction, etc.
- Exhaust systems for fire fighting, piping construction and in other dangerous environments which require ventillation
Technical Specifications

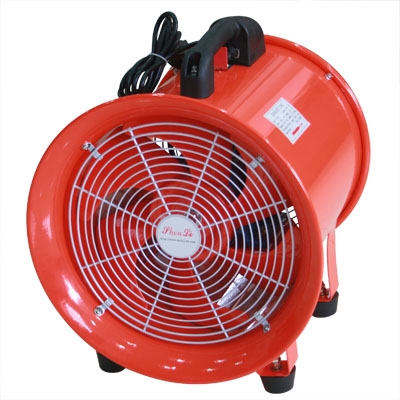

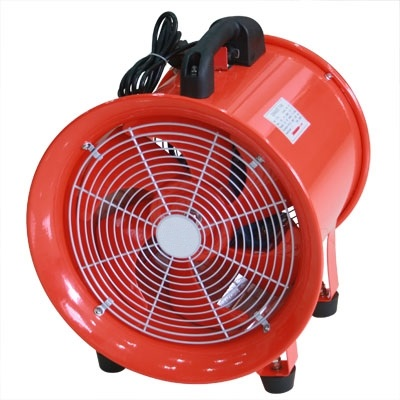

Small Portable Ventilator Fan
|
Model
|
Diameter (mm)
|
Voltage (V)
|
Frequency (Hz)
|
Speed (rpm)
|
Watts (W)
|
Capacity (m3/min)
|
Static (Pa)
|
|
WF-30
|
300 (12'')
|
110
|
50/60
|
2800/3300
|
500/550
|
65/77
|
385/450
|
|
WF-30
|
300 (12'')
|
220~240
|
50/60
|
2800/3300
|
500/550
|
65/77
|
385/450
|

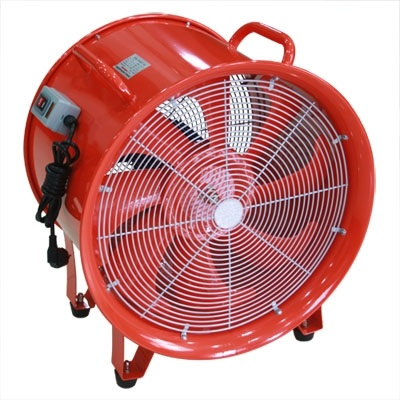

Medium Portable Ventilator Fan
|
Model
|
Diameter (mm)
|
Voltage (V)
|
Frequency (Hz)
|
Speed (rpm)
|
Watts (W)
|
Capacity (m3/min)
|
Static (Pa)
|
Noise (dB(A))
|
|
WF-40
|
400 (16'')
|
110
|
50/60
|
2800/3300
|
1100
|
105/120
|
700/780
|
79
|
|
WF-40
|
400 (16'')
|
220~240
|
50/60
|
2800/3300
|
1100
|
105/120
|
700/780
|
79
|
|
WF-40
|
400 (16'')
|
110
|
50/60
|
1400/1720
|
550
|
80/95
|
300/360
|
68
|
|
WF-40
|
400 (16'')
|
220~240
|
50/60
|
1400/1720
|
550
|
80/95
|
300/360
|
68
|
Large Portable Ventilator Fans
|
Model
|
Diameter (inch)
|
Voltage (V)
|
Frequency (Hz)
|
Speed (RPM)
|
Watts (W)
|
Capacity (m3/min)
|
Noise (dB(A))
|
|
WF-I-24''
|
24''
|
110
|
50/60
|
960/1120
|
250/300
|
130/140
|
60
|
|
WF-I-24''
|
24''
|
220~240
|
50/60
|
960/1120
|
250/300
|
130/140
|
60
|
|
WF-I-28''
|
28''
|
110
|
50/60
|
960/1120
|
350/420
|
150/160
|
63
|
|
WF-I-28''
|
28''
|
220~240
|
50/60
|
960/1120
|
350/420
|
150/160
|
63
|
|
WF-I-32''
|
32''
|
110
|
50/60
|
720/850
|
350/420
|
165/175
|
65
|
|
WF-I-32''
|
32''
|
220~240
|
50/60
|
720/850
|
350/420
|
165/175
|
65
|
|
WF-I-36''
|
36''
|
110
|
50/60
|
720/850
|
450/520
|
200/220
|
68
|
|
WF-I-36''
|
36''
|
220~240
|
50/60
|
720/850
|
450/520
|
200/220
|
68
|
Wall Mounted Electric Fan
|
Model
|
Diameter (inch)
|
Voltage (V)
|
Frequency (Hz)
|
Speed (RPM)
|
Watts (W)
|
Capacity (m3/min)
|
Noise (dB(A))
|
|
WF-I-24''
|
24''
|
110
|
50/60
|
960/1120
|
250/300
|
130/140
|
60
|
|
WF-I-24''
|
24''
|
220~240
|
50/60
|
960/1120
|
250/300
|
130/140
|
60
|
|
WF-I-28''
|
28''
|
110
|
50/60
|
960/1120
|
350/420
|
150/160
|
63
|
|
WF-I-28''
|
28''
|
220~240
|
50/60
|
960/1120
|
350/420
|
150/160
|
63
|
|
WF-I-32''
|
32''
|
110
|
50/60
|
720/850
|
350/420
|
165/175
|
65
|
|
WF-I-32''
|
32''
|
220~240
|
50/60
|
720/850
|
350/420
|
165/175
|
65
|
|
WF-I-36''
|
36''
|
110
|
50/60
|
720/850
|
450/520
|
200/220
|
68
|
|
WF-I-36''
|
36''
|
220~240
|
50/60
|
720/850
|
450/520
|
200/220
|
68
|
