  P series - Shaft mounted Industrial gearbox

No Image


    P Series Shaft Mount Gearbox

  • Built in 6 sizes with a single reduction stage and in 6 sizes with two reduction stages.
  • Two input types are available: one with projecting input shaft and one with compact motor coupling for mounting to IEC flanged electric motors.
  • Gear unit body in engineering cast iron, EN GJL 200 UNI EN 1561 ribbed internally and externally to guarantee rigidity The single lubrication chamber guarantees improved heat dissipation and better lubrication of all the internal components.
  • The helical spur gears are built in 16CrNi4 or 18NiCrMo5 UNI7846 quench-hardened and, case-hardened steel. The first stage is ground.
  • The standard hollow output shaft made of steel and available with holes of various diameters, the possibility of mounting an output flange on the side opposite the input shaft, anchorage through either a tensioner or a torque arm, the possibility of mounting a backstop device, make these gearboxes highly efficient and facilitate their installation in various applications.

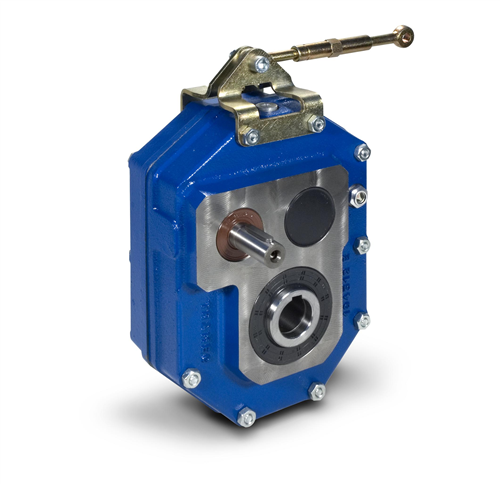

    M Series Shaft Mount Gearbox
  • Available in 7 sizes with two reduction stages, shaft-mounting occurs by means of tension arm
  • A back-stop device can also be mounted if required by the application.
  • A projecting input shaft with key is available for mounting of pulleys for belt transmissions.
  • The helical spur gears are built in 20MnCr5 UNI7846 quench-hardened and case-hardened steel.
  • The teeth of all gears are ground in order to ensure silent running.
  • The standard hollow output shaft made of steel is dimensioned accordingly to enhance performance in all different applications.
  • The rigid structure of the housing in engineering cast iron ensures superior resistance to stress.
  • The single lubrication chamber guarantees excellent thermal dissipation.

Configuration



Direct and belt Shaft Mount Gearboxes
