  Air Motors Technology   >   Vane Air Motors   >   V2 - 0.69kW


  V2 - 0.69kW

No Image


No Image


No Image


No Image


No Image


No Image


No Image


No Image


Specifications

Model
V2-F
V2-L
V2-B
V2-N
V2-I
Mounting
Face
Foot
Butterfly
NEMA 56C
IEC #72 D71,D72C
Performance at Maximum Speed
Power (HP / kW)
0.93 / 0.69
Torque (N m / lb in)
2.20 / 19.5
Speed (RPM)
3000
Air Consumption (l/min / CFM)
850 /30
Mass (kg / lb)
2.2 / 6.38
3.3 / 7.26
3 / 6.6
3.8 / 8.36
4.3 / 9.5, 4 / 8.8
Performance at Maximum Torque
Torque (N m / lb in)
3 / 26.55
Speed (RPM)
350


Model Code
Gear Ratio
Performance at Maximum Speed
Maximum Torque
Series
Type
Power
Torque
Speed
Air Consumption
Speed
Torque
HP
kW
N·m
lb·in
RPM
l/min
CFM
RPM
N·m
lb·in
V2
(2AM)
*
Standard
1:1
0.93
0.69
2.20
19.5
3,000
850
30
350
3.05
27
*B
with brake
**G3
with reducer
with reducer /
brake
3:1
0.78
0.58
5.6
49.56
1,000
900
32
100
7.6
67
**G5
5:1
0.75
0.56
9
79.65
600
60
12
106
**G10
10:1
0.74
0.55
17.6
156
300
30
24
212
**G15
15:1
0.70
0.52
25.0
221
200
20
34
301
**G20
20:1
0.65
0.49
31.0
274
150
15
42
372
**G30
30:1
0.58
0.43
41.0
363
100
10
55
487
**G40
40:1
0.51
0.38
48.6
430
75
7
66
584
**G60
60:1
0.47
0.35
67.0
593
50
5
89
788



Air Motors can easily operate under conditions which are not suitable for electric, hydraulic, stepper and servo motors

  • Our Vane air motors are all reversible & Availabe in 8 Vanes
  • Dual output shafts are available
  • Gear reductions are available. Huge range of Reduction Gearboxes
  • Brakes are availabe as an option
  • Control valves are available

Vane Air motor applications are unlimited:

  • Hoists / Winches
  • Hose Reels
  • Turntables
  • Conveyor Drives
  • Pump Drives
  • Automation Device
  • Choppers / Grinders
  • Food / Pharmacy Packaging

Vane Air Motor Features Include:

  • Cast Iron Construction
  • 100% Explosion-Proof
  • Stalling Safety
  • Stepless Speed Control
  • Never Burn out
  • Self-Sealing & Cool Running
  • Smooth Start
  • Mounting Flexibility
  • All Plane Operation
  • Toleration of Environment




Vane Air Motor
Air Motor
Vane Air Motor
Air Motor
Vane Air Motor
V2-F

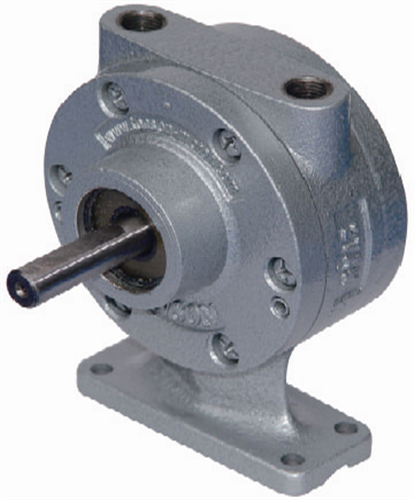

V2-L

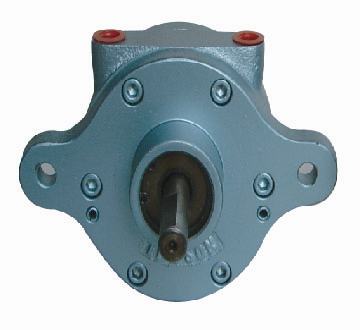

V2-B

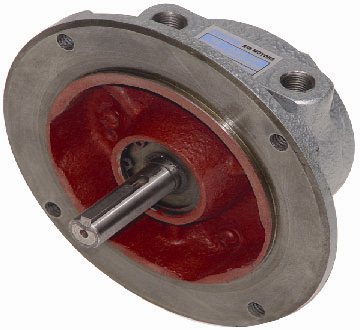

V2-N

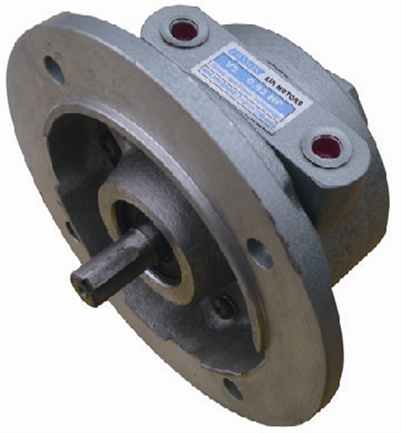

V2-I



Air Motor Accessories

Call TONSON on Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au
for any enquiries or questions on all Air Motors.
