  Air Motors Technology   >   Vane Air Motors   >   V6 - 3.0kW


  V6 - 3.0kW

No Image


No Image


No Image


No Image


No Image


No Image


No Image


Specifications


Model
V6-F
V6-L
V6-B
V6-N
V6-I
V6-I-SS

Mounting
Face
Foot
Butterfly
NEMA 56C
IEC #72 D80
IEC #72 D80
Performance at Maximum Speed
Power (HP / kW)
4 / 3
Torque (Nm / lbin)
10 / 88.5
Speed (RPM)
3000
Air Consumption (l/min / CFM)
3600 / 128
Mass (kg / lb)
7.6 / 16.72
7.9 / 17.38
7.8/17.16
8.4 / 18.48
8.8 /19.36
9.5 / 20.9

Performance at Maximum Torque
Torque (Nm / lbin)
13 / 115
Speed (RPM)
300



Model Code
Gear Ratio
Performance at Maximum Speed
Maximum Torque
Series
Type
Power
Torque
Speed
Air Consumption
Speed
Torque
HP
kW
N·m
lb·in
RPM
l/min
CFM
RPM
N·m
lb·in
V6
(6AM)
*
Standard
1:1
4
3
10
89
3,000
3,620
128
300
13
115
*B
with brake
**G3

with reducer

with reducer /
brake
3:1
3.52
2.63
25
221
1,000
3,680
130
100
33
292
**G5
5:1
3.4
2.54
40
354
600
60
52
460
**G10
10:1
3.4
2.54
81
720
300
30
107
950
**G15
15:1
2.95
2.2
105
929
200
20
137
1,212
**G20
20:1
2.65
1.98
124
1,100
150
15
175
1,550
**G30
30:1
2.37
1.77
169
1,496
100
10
220
1,947
**G40
40:1
2.1
1.57
195
1,725
75
3,820
135
8
283
2,500
**G50
50:1
2
1.5
238
2,106
60
6
309
2,735
**G60
60:1
2
1.5
290
2,567
50
5
377
3,336
**G100
100:1
1.88
1.4
446
3,947
30
3
580
5,133
**G150
150:1
1.88
1.4
675
5,974
20
2
878
7,770
**G200
200:1
1.8
1.34
900
7,965
15
1.8
1170
10,355
**G360
360:1
1.8
1.34
1600
14,160
8
1
2080
18,408

2D and 3D Drawings Available For Our Air Motors!!

Air Motors can easily operate under conditions which are not suitable for electric, hydraulic, stepper and servo motors

  • Our Vane air motors are all reversible & Available in 8 Vanes
  • Dual output shafts are available
  • Gear reductions are available. Huge range of Reduction Gearboxes
  • Brakes are available as an option
  • Control valves are available

Vane Air motor applications are unlimited:

  • Hoists / Winches
  • Hose Reels
  • Turntables
  • Conveyor Drives
  • Pump Drives
  • Automation Device
  • Choppers / Grinders
  • Food / Pharmacy Packaging

Vane Air Motor Features Include:

  • Cast Iron Construction
  • 100% Explosion-Proof
  • Stalling Safety
  • Stepless Speed Control
  • Never Burn out
  • Self-Sealing & Cool Running
  • Smooth Start
  • Mounting Flexibility
  • All Plane Operation
  • Toleration of Environment

  • Vane Air Motor
    Air Motor
    Vane Air Motor
    Air Motor Vane Air Motor
    stainless steel vane air motor
    Stainless Steel

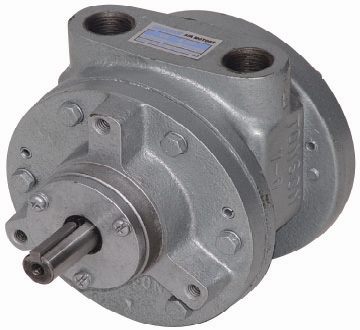

    V6-F

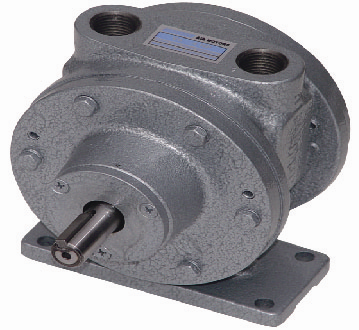

    V6-L

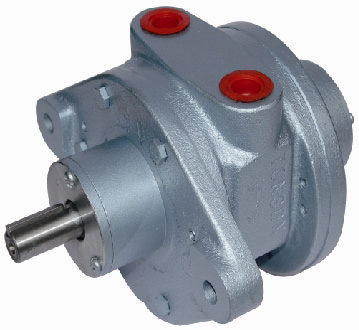

    V6-B

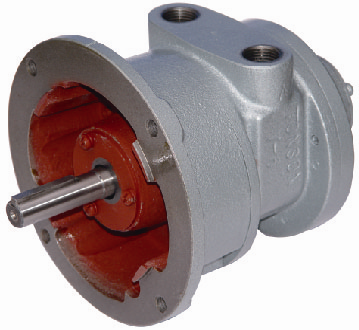

    V6-N

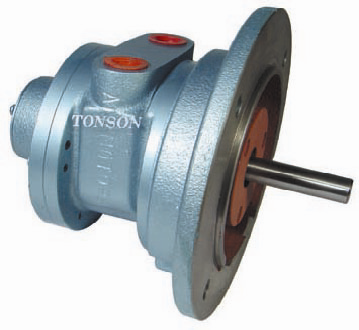

    V6-I
    V6-I-SS


 Air Motor Accessories
