  M14 (RM210) - 4.0kW

No Image


No Image


No Image


No Image


No Image


No Image

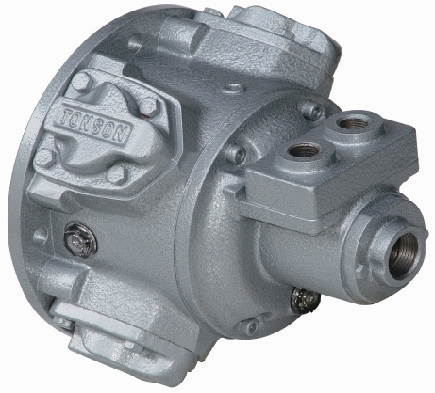

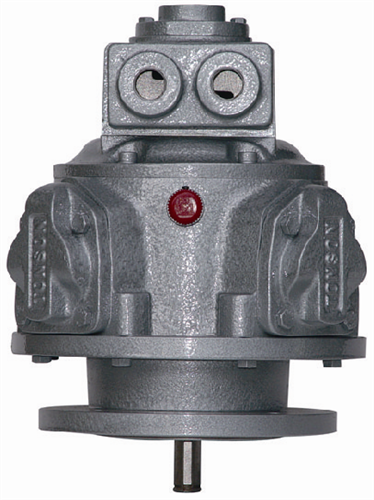

Our M14 Radial Piston Air Motor is manufactured to the highest quality and we can customise to suit your special requirements, various mount types and construction material. Tonson Australia specialise in design, manufacture and supply of Piston Air Motors with many years experience and knowledge into the Australian market. Many Options for gearbox types, ratios and mounting available. Equivalent to Old Fenner RM210 Piston Air Motor.

Specifications

Model Code
Gear Ratio
Performance at Maximum Speed
Maximum Torque
Series
Type
Power
Torque
Speed
Air Consumption
Speed
Torque
HP
kW
Nm
lbin
RPM
l/min
CFM
RPM
Nm
lbin
M14
(210)
*
Standard
1:1
5.36
4
20
177
1900
5880
208
380
34
301
*B
with brake
**G3
with reducer

with brake and reducer
3:1
4.80
3.58
54
478
633
126.7
94.5
836
**G5
5:1
90
797
380
76
158
1394
**G10
10:1
180
1593
190
38
315
2788
**G15
15:1
270
2390
127
25.3
473
4182
**G20
20:1
360
3186
95
19
630
5576
**G30
30:1
540
4779
63.3
12.7
945
8364

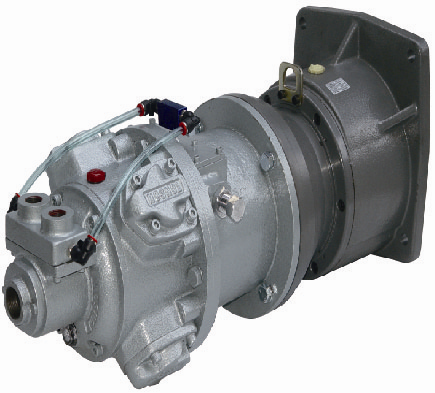

**G40
40:1
720
6373
47.5
9.5
1260
11152
**G60
60:1
1080
9559
31.7
6.3
1890
16728
**G80
80:1
1440
12745
23.8
4.75
2520
22304

2D and 3D Drawings Available For Our Air Motors!!

Piston Air Motors can easily operate under conditions unsuitable for Electric Motors and operate in exceptional environments conditions including:

  • Very high/low ambient temperatures
  • Radiated heat
  • Powdery/Dust
  • Humid
  • Corrosive
  • Flammable
  • Explosive

Suitable for Applications and various industries:

  • Paint
  • Ink
  • Acetone
  • Alcohol
  • Exhaust/Ventilation
  • Underground Mines

Piston Air Motor Features:

  • Complete Safety
  • Cast Iron Construction
  • 100% Explosion-Proof
  • Speed confirms to load torque
  • Very high Efficiency
  • Low Air Consumption
  • Simple stepless speed control
  • Instant reversibility
  • Mounting Flexibility
  • Toleration of all different harsh environments

Piston Air Motor Optional Accessories:

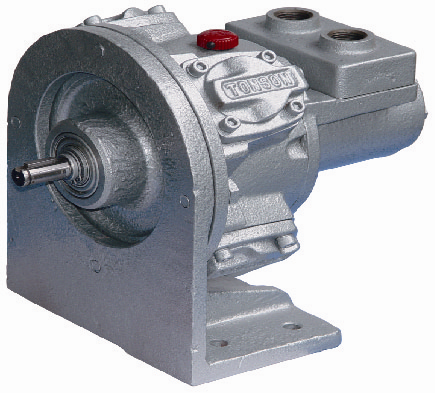

  • IEC Flange Or Foot Mount
  • Parking Brake
  • Valve Controls
  • Remote Control valve
  • Hand Control Valve
  • Instant Reversibility
  • Filter - Lubricator - Regulator (FRL)
  • Pressure Gauges
  • Silencers



 Air Gearmotors

For applications where precise and variable turning power and speed is a requirement. Examples are bolt tensioning equipment or rock drilling rigs, precise lifting, lowering, traversing or turning. Unlike electric gearmotors, no chance of burn-out nor heat buildup with TONSON Air Motors. Direction of rotation is instantly reversible.
Precise Turning Power, High Torque Capacity


Brakes

For applications where positive braking is a requirement, a range of caliper brakes is offered.
These are designed to withstand full stall torque of the air motor. The brake consists of two spring applied shoes pressed against a central hub. The shoes are released by applying air pressure to the cylinder/piston assembly. The brake torque can be varied by adjustment of two spring adjusters but it is normally set so that a pilot pressure of 4 bar (60 PSI) will fully release it.


Valve Options (1/2", 3/4", 1", 1 1/4", 1 1/2", 2")

A range of bolt on Hand Control Valves and Remote Control Valves are available for use on all TONSON Piston Air Motors. Designed to completely eliminate all static friction, thereby reducing hysteresis effect and offering a very high degree of sensitive speed control. Suitable for applications where forward and reverse hand control is required, with spring centre to neutral position by a lever mechanism or controlled by air pilot signal.
Two control styles are manufactured:
i) Equal power and speed in both directions
ii) Biased to give a degree of control for hoisting applications.

Hand Control Valve

Custom Hand Control Valve

Remote Control Valve

One pilot port, 1/4" on each end. Caps may be positioned with port at top, bottom or either side. The pilot pressure range is between 1.4 bar (20 psi) and 4.8 bar (70 psi), increased pilot pressure gives increased speed.
