  M16 (RM410) - 14kW

No Image


No Image


No Image


No Image


No Image


No Image


No Image

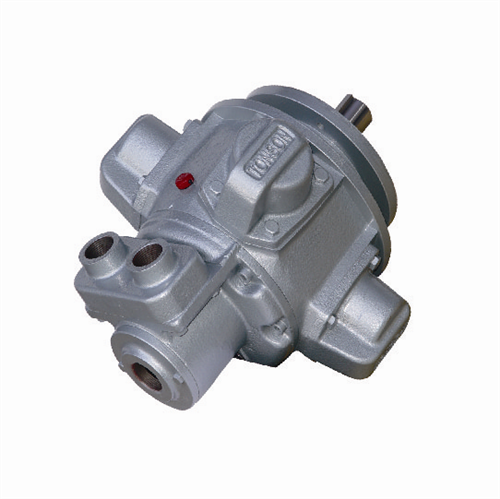

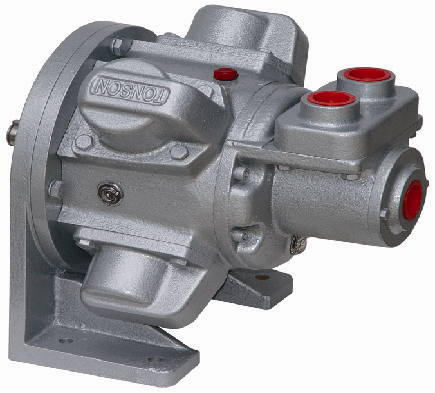

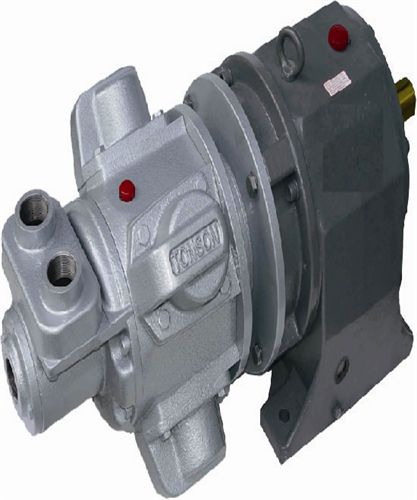

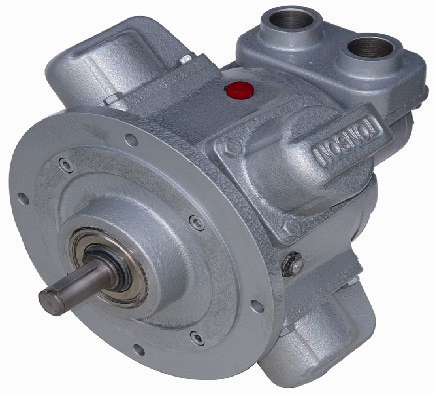

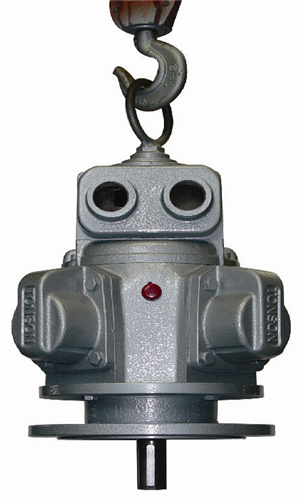

Our M16 Radial Piston Air Motor is manufactured to the highest quality and we can customise to suit your special requirements, various mount types and construction material. Tonson Australia specialise in design, manufacture and supply of Piston Air Motors with many years experience and knowledge into the Australian market. Many Options for gearbox types, ratios and mounting available. Equivalent to old Fenner RM410 Radial Piston Air Motor.

Specifications

Model Code
Gear Ratio
Performance at Maximum Speed
Maximum Torque
Series
Type
Power
Torque
Speed
Air Consumption
Speed
Torque
HP
kW
Nm
lbin
RPM
l/min
CFM
RPM
Nm
lbin
M16
(410)
*
Standard
1:1
18.8
14
85
752
1600
15600
551
320
140
1239
*B
with brake
**G3
with reducer

with brake and reducer
3:1
13
9.70
227
2009
533
106.7
374
3308
**G5
5:1
378
3348
320
64
623
5514
**G10
10:1
757
6696
160
32
1246
11028
**G15
15:1
1135
10043
107
21.3
1869
16542
**G20
20:1
1513
13391
80
16
2492
22056
**G30
30:1
2270
20087
53.3
10.7
3738
33084
**G40
40:1
3026
26782
40
8
4984
44112
**G60
60:1
4539
40174
26.7
5.3
7476
66168

2D and 3D Drawings Available For Our Air Motors!!

Piston Air Motors can easily operate under conditions unsuitable for Electric Motors and operate in exceptional environments conditions including:

  • Very high/low ambient temperatures
  • Radiated heat
  • Powdery/Dust
  • Humid
  • Corrosive
  • Flammable
  • Explosive

Suitable for Applications and various industries:

  • Paint
  • Ink
  • Acetone
  • Alcohol
  • Exhaust/Ventilation
  • Underground Mines

Piston Air Motor Features:

  • Complete Safety
  • Cast Iron Construction
  • 100% Explosion-Proof
  • Speed confirms to load torque
  • Very high Efficiency
  • Low Air Consumption
  • Simple stepless speed control
  • Instant reversibility
  • Mounting Flexibility
  • Toleration of all different harsh environments

Piston Air Motor Optional Accessories:

  • IEC Flange Or Foot Mount
  • Parking Brake
  • Valve Controls
  • Remote Control valve
  • Hand Control Valve
  • Instant Reversibility
  • Filter - Lubricator - Regulator (FRL)
  • Pressure Gauges
  • Silencers

 Air Gearmotors

For applications where precise and variable turning power and speed is a requirement. Examples are bolt tensioning equipment or rock drilling rigs, precise lifting, lowering, traversing or turning. Unlike electric gearmotors, no chance of burn-out nor heat buildup with TONSON Air Motors. Direction of rotation is instantly reversible.
Precise Turning Power, High Torque Capacity


Brakes

For applications where positive braking is a requirement, a range of caliper brakes is offered.
These are designed to withstand full stall torque of the air motor. The brake consists of two spring applied shoes pressed against a central hub. The shoes are released by applying air pressure to the cylinder/piston assembly. The brake torque can be varied by adjustment of two spring adjusters but it is normally set so that a pilot pressure of 4 bar (60 PSI) will fully release it.


Valve Options (1/2", 3/4", 1", 1 1/4", 1 1/2", 2")

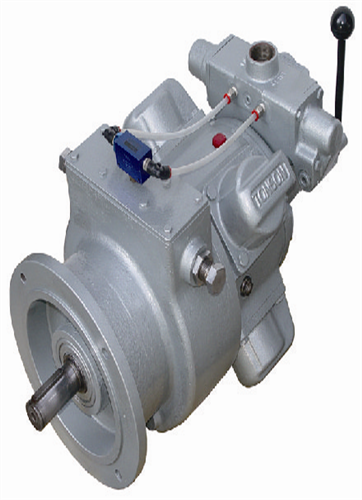

A range of bolt on Hand Control Valves and Remote Control Valves are available for use on all TONSON Piston Air Motors. Designed to completely eliminate all static friction, thereby reducing hysteresis effect and offering a very high degree of sensitive speed control. Suitable for applications where forward and reverse hand control is required, with spring centre to neutral position by a lever mechanism or controlled by air pilot signal.
Two control styles are manufactured:
i) Equal power and speed in both directions
ii) Biased to give a degree of control for hoisting applications.

Hand Control Valve

Custom Hand Control Valve

Remote Control Valve

One pilot port, 1/4" on each end. Caps may be positioned with port at top, bottom or either side. The pilot pressure range is between 1.4 bar (20 psi) and 4.8 bar (70 psi), incresed pilot pressure gives increased speed.

Ordering Code

Applications

 Air Motor Accessories

Call TONSON on Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au
for any enquiries or questions on all Air Motors.
