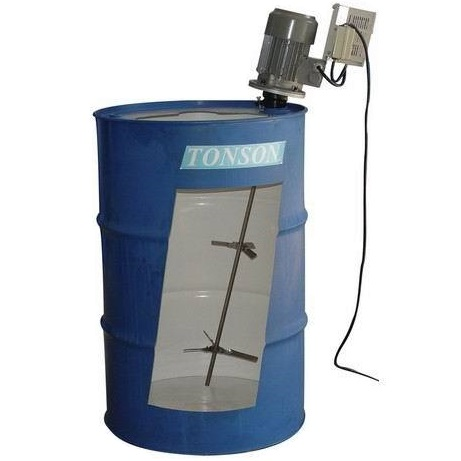

Closed Drum Electric Mixer (200L Drums)
Bung Entry Electric Mixer can be applied in mixing for all closed drums. Angle bracket is screwed into 2" bung opening then set screw is fastened to angle bracket after Electric Mixer is placed into the drum. Specially designed stainless steel blade will fit easily, blades extend by centrifugal force when operating and retract when stopped. We are a manufacturer of all types of Mixers for all applications and Industries. We can customise if required. Our standard line of mixers is comprehensive.
Model: TS-50T (Electric Mixers)
Sizes Available: 0.18KW & 0.37KW
- Size: TS-50T-0.18
Mixer Shaft Length (mm): 880
Mixer Shaft Diameter (mm): 12.7
Mixer Propeller Options: 6" x 2 (Stainless steel propeller standard)
Optional: Explosion/Flame proof motor
- Size: TS-50T-0.37
Mixer Shaft Length (mm): 880mm
Mixer Shaft Diameter (mm): 12.7
Mixer Propeller: 6" x 1 OR 10" x 1 (Stainless steel propeller standard)
Optional: Explosion/Flame proof motor
Electric Motors operate with either 240V 1Ph or 415V 3Ph, these motors could be supplied with different speeds (980RPM & 1400RPM) our Mixers has many features including:
- Explosion proof motors optional where air supply not on site
- Very reliable, exceptional design and 24 hour operation
- AC Inverter for variable Speed Control optional
- Usable in harsh environments.
- Motors are reversible, could be run in either direction
- Compact size
- Cool running
- Perfect mixing solution for any chermical at light and medium viscosity materials
- Many Propellers and Impellers available
Call our Australian Head Office Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au for any enquiries or questions on customised Mixers.
