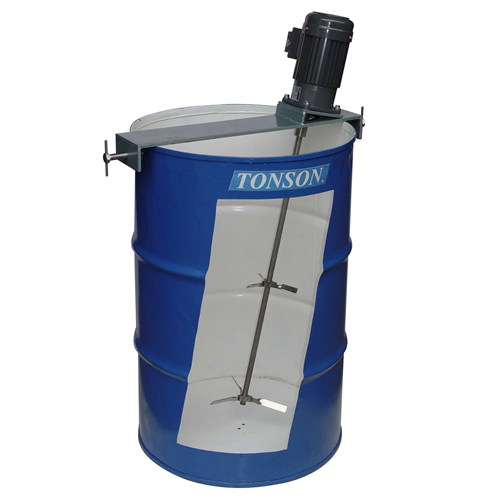

Cross Tank Electric Mixer (200L Drums)
Cross Tank Mount Air air mixer is an excellent cost effective solution for mixing and blending of light to medium viscosity materials. Mounting Bracket will securely fit any steel drum. It can be easily moved from one tank to another.
Model: TS-50C (Electric Mixers)
Sizes Available: 0.18KW, 0.37KW & 0.75KW
- Size: TS-50C-0.18
Mixer Shaft Length (mm): 880mm
Mixer Shaft Diameter (mm): 16
Mixer Propeller Options: 6" x 1 OR 8" x 1
Stainless Steel Shaft and Propeller
Optional: Explosion/Flame proof motor
- Size: TS-50C-0.37
Mixer Shaft Length (mm): 880mm
Mixer Shaft Diameter (mm): 16
Mixer Propeller: 8" x 2
Stainless Steel Shaft and Propeller
Optional: Explosion/Flame proof motor
- Size: TS-50C-0.75
Mixer Shaft Length (mm): 880mm
Mixer Shaft Diameter (mm): 20
Mixer Propeller: 8" x 1 OR 10" x 1
Stainless Steel Shaft and Propeller
Optional: Explosion/Flame proof motor
Model: TS-50C-CS (With Contamination Shield)
As Atmospheric temperature is higher than motor's internal temperature, relative humidity occurs causing sweats on the surface of the motor. Contamination shield is used to prevent sweats contaminating drum content.
- Sizes: TS-50C-CS-0.18, TS-50C-CS-0.37 & TS-50C-CS-0.75
(Same Options & Dimensions as TS-50C above)
Model: TS-50C-RL (With Revesible Control)
When mixing large volumes with light additives, reversible control could be installed on the motor for best mixing results.
- Sizes: TS-50C-RL-0.18, TS-50C-RL-0.37 & TS-50C-RL-0.75
(Same Options & Dimensions as TS-50C above)
Electric Motors operate with either 240V 1Ph or 415V 3Ph, these motors could be supplied with different speeds (980RPM & 1400RPM) our Mixers has many features including:
- Explosion proof motors optional where air supply not on site
- Very reliable, exceptional design and 24 hour operation
- AC Inverter for variable Speed Control optional
- Usable in harsh environments.
- Motors are reversible, could be run in either direction
- Compact size
- Cool running
- Perfect mixing solution for any chermical at light and medium viscosity materials
- Many Propellers and Impellers available
Call our Australian Head Office Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au for any enquiries or questions on customised Mixers.
