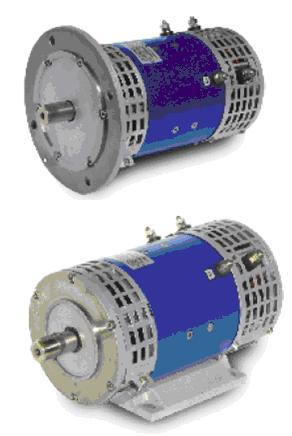

SAMT Traction motors (Wound Field) are used for Electric traction applications, Traction DC motors are used where DC signal is available and Intermittent S2 up to 1Hr Duty operation is required.
Power Range (kW): 2.2 -11
Voltage: 24/48/72
Speed (RPM): 1500/3000
Mountings: Foot/Flange
Duty: S2-60Mins
Suitable for various Applications including:
- Golf Carts
- Stackers
- Fork Lift Trucks
- Electric Boats
- Material Handling
- Transportation
- Automotive
- Tricycles
Battery Operated PM DC Motor Features:
- Quality Design
- Intermittent Operation (60 mins) Available
- Efficient
- Mounting flexibility - Foot / Flange various positions
- Various Speeds Including 2 pole & 4 pole
- Available in TENV or SPDP Construction
- High Staring Torque Capacity
- High Current Load Carrying Capacity
- IP20 & IP44 Protection
- Class F or H Insulation
- Ambient Tempertures upto 45 deg. C
- Dynamically Balanced rotors
- Intermittently Severe Over Load Capacity
- External Brushes for ease of replacement
- Rigid Cast brush-holders for lower sparking
- High quality ball bearings with high temperature grease
PM DC Optional Accessories:
- Metric IEC Flange Or Foot Mount
- Planetary gearbox
- Right angle Worm gearbox
- Couplings
- Chain drives
