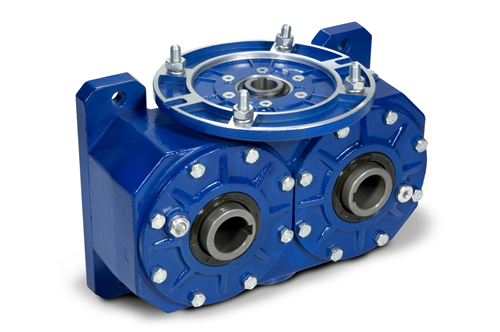

VM series - Double output worm Industrial gearbox
APS series includes gearboxes specially manufactured in order to comply with specifical requirements. The kinematic motion is carried out by means of a wormshaft and two wormwheels in order to have two output shafts with a synchronous rotation.
These gearboxes can be assembled to electric motors or motorvariators equipped with a fixing flange with dimensions conforming to IEC specifications.
- Casing and flanges
Made from aluminium and painted BLUE RAL 5010
- Worm screw
Made from alloy steel. Hardened and cemented then finished by grinding
- Worm wheel
UNI 7013 GcuSn12 bronze toothed band. Inserted by casting on UNI 5007 G20 cast-iron bushing
- Bearings
Taper roller bearings are mounted on the screw and the two outputs
- Lubrication
Gearboxes are normally supplied without any lubricant. However, they can be supplied with synthetic lubricant on request
