  SMV Frequency Inverters

No Image


No Image


No Image


Whereas inverter applications are extremely varied, our precisely tailored and uniform product range is much easier to handle. A range tailored to meet your exact needs– from basic movements and positioning tasks to servo applications. Our devices are reliable, meet strict quality requirements and can be easily adapted to suit your specific requirements.

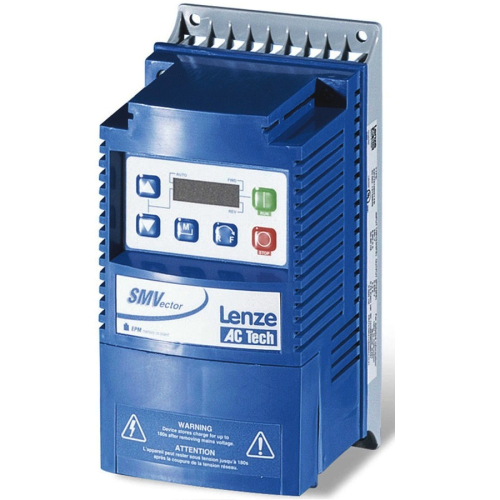

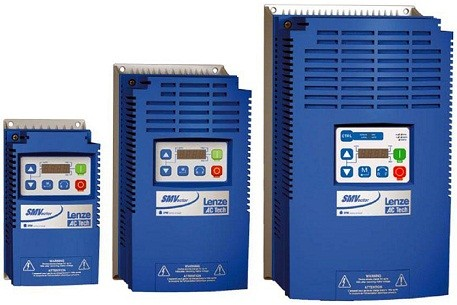

SMV IP31

SMV IP31 Inverter for control cabinet installation is designed for IP20 and IP31 degrees of protection. For some devices, not only is the easy installation mode possible, but also the ability to use the cold-plate or push-through installation technique. The devices can be installed one after the other to save space, and they can be used in a DC bus operation, keeping the wiring efforts to a minimum.
Thus, topologies can be clearly arranged even in the smallest spaces. All other control components, like the controller, the I/O system, are mounted right next to the inverter.

Variable functions in complex applications

High-performance inverter for controlled motion.
Power range: 0.25 to 45 kW (1.1 to 88 A)

Particularly suitable for: turntables in the field of intralogistics, production lines in the food industry and industrial manufacturing operations.

Advantages

  • Connections: start/stop, analog input, freely programmable digital inputs and outputs (4/1)
  • Communication: AS interface, CANopen, DeviceNet, EtherCAT, PROFIBUS
  • Enclosure IP31

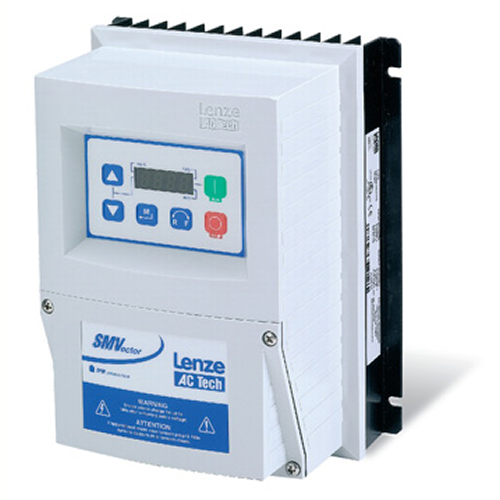

SMV IP65

With our SMV IP65 inverter, we offer precisely tailored products with a high degree of protection for decentralised applications, available in either motor-mounting or wall-mounting versions. Its compact design allows the device to be secured directly to the machine support, for example, thus shortening the length of the motor cables considerably. This enables even complex machines to be structured clearly. Our SMV IP65 inverter is particularly beneficial in the automotive, intralogistics and printing industries.

Offer exemplary performance even in extreme environments.

Decentralised inverters: suitable for wall mounting.
Power range: 0.37 to 22 kW (1.3 to 47 A)

Particularly suitable for: production equipment in the food industry, drives used outdoors.

Advantages

  • Connections: start/stop, analog input, freely programmable digital inputs and outputs (4/1)
  • Communication: AS interface, CANopen, DeviceNet, EtherCAT, PROFIBUS
  • A variety of housing versions
  • LED display
  • High degree of protection IP65



Call our Australian Head Office Ph: 02 9607 4100 or email us:
sales@samt.com.au
for any enquiries or questions on all Variable Speed Drives.
