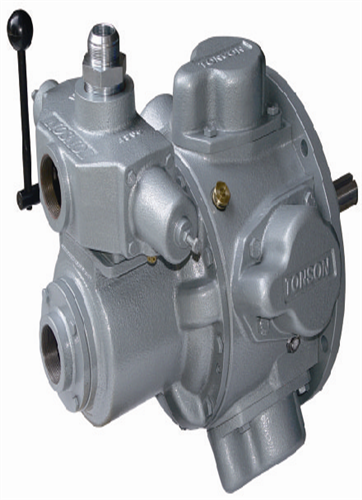

M17 (RM510) - 22kW
Our M17 Radial Piston Air Motor is manufactured to the highest quality and we can customise to suit your special requirements, various mount types and construction material. Tonson Australia specialise in design, manufacture and supply of Piston Air Motors with many years experience and knowledge into the Australian market. Many Options for gearbox types, ratios and mounting available. Equivalent to old Fenner RM510 Radial Piston Air Motor.
Specifications
|
Model Code
|
Gear Ratio
|
Performance at Maximum Speed
|
Maximum Torque
|
|
Series
|
Type
|
Power
|
Torque
|
Speed
|
Air Consumption
|
Speed
|
Torque
|
|
HP
|
kW
|
Nm
|
lbin
|
RPM
|
l/min
|
CFM
|
RPM
|
Nm
|
lbin
|
|
M17
(RM510)
|
*
|
Standard
|
1:1
|
21.7
|
16.2
|
140
|
1239
|
1100
|
19810
|
700
|
220
|
235
|
2080
|
|
*B
|
with brake
|
|
**G3
|
with reducer
with brake and reducer
|
3:1
|
19
|
14.2
|
374
|
3308
|
367
|
73.3
|
627
|
5553
|
|
**G5
|
5:1
|
623
|
5514
|
220
|
44
|
1046
|
9256
|
|
**G10
|
10:1
|
1246
|
11028
|
110
|
22
|
2092
|
18511
|
|
**G20
|
20:1
|
2464
|
21808
|
55
|
11
|
4136
|
36607
|
|
**G30
|
30:1
|
3696
|
32712
|
36.7
|
7.3
|
6204
|
54910
|
|
**G40
|
40:1
|
4928
|
43616
|
27.5
|
5.5
|
8272
|
73213
|
Piston Air Motors can easily operate under conditions unsuitable for Electric Motors and operate in exceptional environments conditions including:
- Very high/low ambient temperatures
- Radiated heat
- Powdery/Dust
- Humid
- Corrosive
- Flammable
- Explosive
Suitable for Applications and various industries:
- Paint
- Ink
- Acetone
- Alcohol
- Exhaust/Ventilation
- Underground Mines
Piston Air Motor Features:
- Complete Safety
- Cast Iron Construction
- 100% Explosion-Proof
- Speed confirms to load torque
- Very high Efficiency
- Low Air Consumption
- Simple stepless speed control
- Instant reversibility
- Mounting Flexibility
- Toleration of all different harsh environments
Piston Air Motor Optional Accessories:
- IEC Flange Or Foot Mount

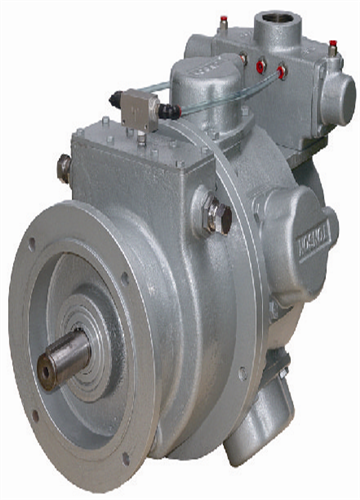

- Parking Brake
- Valve Controls
- Remote Control valve
- Hand Control Valve
- Instant Reversibility
- Filter - Lubricator - Regulator (FRL)
- Pressure Gauges
- Silencers
Air Gearmotors
For applications where precise and variable turning power and speed is a requirement. Examples are bolt tensioning equipment or rock drilling rigs, precise lifting, lowering, traversing or turning. Unlike electric gearmotors, no chance of burn-out nor heat buildup with TONSON Air Motors. Direction of rotation is instantly reversible.
Precise Turning Power, High Torque Capacity
Brakes
For applications where positive braking is a requirement, a range of caliper brakes is offered.
These are designed to withstand full stall torque of the air motor. The brake consists of two spring applied shoes pressed against a central hub. The shoes are released by applying air pressure to the cylinder/piston assembly. The brake torque can be varied by adjustment of two spring adjusters but it is normally set so that a pilot pressure of 4 bar (60 PSI) will fully release it.
Valve Options (1/2", 3/4", 1", 1 1/4", 1 1/2", 2")
A range of bolt on Hand Control Valves and Remote Control Valves are available for use on all TONSON Piston Air Motors. Designed to completely eliminate all static friction, thereby reducing hysteresis effect and offering a very high degree of sensitive speed control. Suitable for applications where forward and reverse hand control is required, with spring centre to neutral position by a lever mechanism or controlled by air pilot signal.
Two control styles are manufactured:
i) Equal power and speed in both directions
ii) Biased to give a degree of control for hoisting applications.
|
|
 |
 |
|
Hand Control Valve
|
Custom Hand Control Valve
|
Remote Control Valve
|
One pilot port, 1/4" on each end. Caps may be positioned with port at top, bottom or either side. The pilot pressure range is between 1.4 bar (20 psi) and 4.8 bar (70 psi), incresed pilot pressure gives increased speed.
Ordering Code
Applications
Air Motor Accessories
Call TONSON on Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au for any enquiries or questions on all Air Motors.
