  M12 - 2.5kW

No Image


No Image


No Image

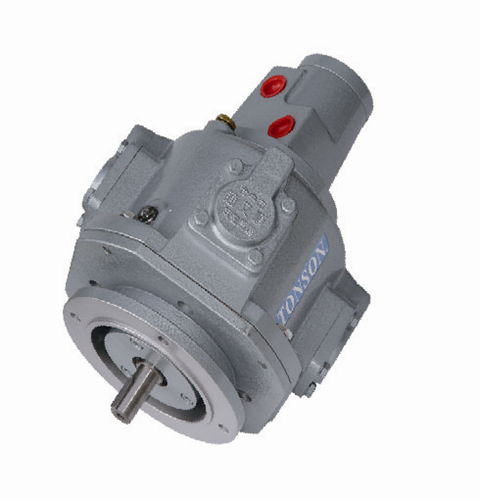

Our M15 Radial Piston Air Motor is manufactured to the highest quality and we can customise to suit your special requirements, various mount types and construction material. Tonson Australia specialise in design, manufacture and supply of Piston Air Motors with many years experience and knowledge into the Australian market. Many Options for gearbox types, ratios and mounting available.

Specifications

Model Code
Gear Ratio
Performance at Maximum Speed
Maximum Torque
Series
Type
Power
Torque
Speed
Air Consumption
Speed
Torque
HP
kW
Nm
lbin
RPM
l/min
CFM
RPM
Nm
lbin
M12
(406)
*
Standard
1:1
3.31
2.47
17.5
155
1350
3700
131
270
31
274
*B
with brake
**G5
with reducer


with brake and reducer
5:1
3
2.24
78.5
695
270
54
139
1231
**G10
10:1
157
1390
135
27
278
2462
**G15
15:1
235
2080
90
18
416
3684
**G20
20:1
314
2779
67.5
13.5
556
4923
**G30
30:1
471
4169
45
9
834
7385
**G40
40:1
602
5328
33.8
6.8
1066
9438
**G60
60:1
903
7992
22.5
4.5
1600
14158
**G100
100:1
1505
13320
13.5
2.7
2666
23596
**G120
120:1
1806
15984
11.3
2.3
3199
28315
**G160
160:1
2408
21313
8.44
1.7
4266
37754
**G200
200:1
3010
26641
6.75
1.4
5332
47192

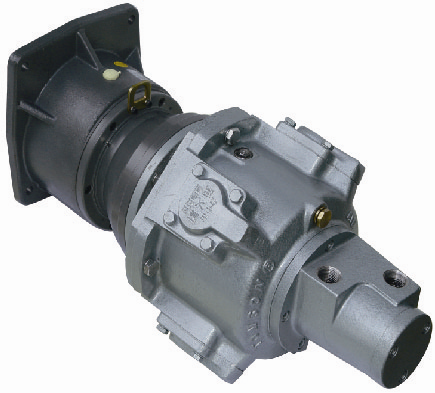

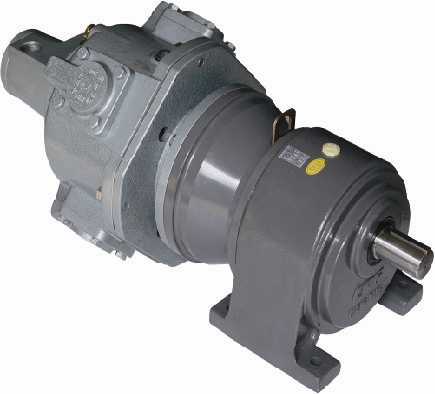

Air Gearmotors

For applications where precise and variable turning power and speed is a requirement. Examples are bolt tensioning equipment or rock drilling rigs, precise lifting, lowering, traversing or turning. Unlike electric gearmotors, no chance of burn-out nor heat buildup with TONSON Air Motors. Direction of rotation is instantly reversible.
Precise Turning Power, High Torque Capacity


Brakes

For applications where positive braking is a requirement, a range of caliper brakes is offered.
These are designed to withstand full stall torque of the air motor. The brake consists of two spring applied shoes pressed against a central hub. The shoes are released by applying air pressure to the cylinder/piston assembly. The brake torque can be varied by adjustment of two spring adjusters but it is normally set so that a pilot pressure of 4 bar (60 PSI) will fully release it.


Valve Options (1/2", 3/4", 1", 1 1/4", 1 1/2", 2")

A range of bolt on Hand Control Valves and Remote Control Valves are available for use on all TONSON Piston Air Motors. Designed to completely eliminate all static friction, thereby reducing hysteresis effect and offering a very high degree of sensitive speed control. Suitable for applications where forward and reverse hand control is required, with spring centre to neutral position by a lever mechanism or controlled by air pilot signal..
Two control styles are manufactured:
i) Equal power and speed in both directions
ii) Biased to give a degree of control for hoisting applications.

Hand Control Valve

Custom Hand Control Valve

Remote Control Valve

One pilot port, 1/4" on each end. Caps may be positioned with port at top, bottom or either side. The pilot pressure range is between 1.4 bar (20 psi) and 4.8 bar (70 psi), increased pilot pressure gives increased speed.

 Applications

 Air Motor Accessories

Call TONSON on Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au
for any enquiries or questions on all Air Motors.
